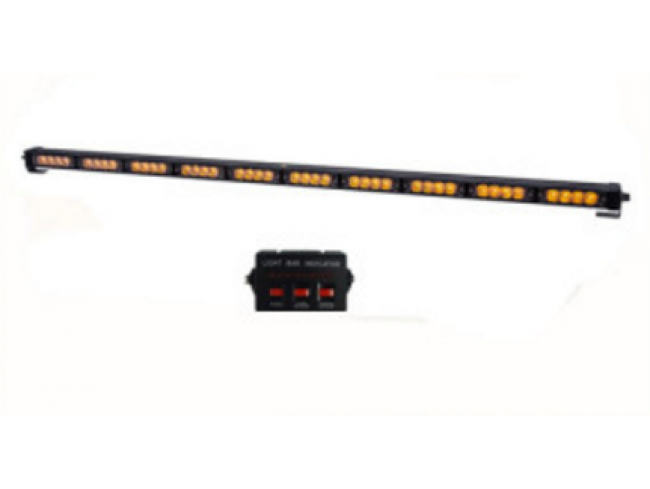

LED FLASH DIRECTIONAL INTERIOR TRAFFIC ADVISOR NO.ZXSL-243T



Weight : 2.4 kg

Product Size (L x W x H) : 122.20 x 6.50 x 4.70 cm

Packing Size (L x W x H) : 124.00 x 7.00 x 6.00 cm

G.W / N.W : 2.6/2.4 kg

Quantity : 1 pcs/carton PC

DESCRIPTION : 1.1W Gen-3 LED tube, total 40 pcs LED tube; 2. Having many kinds of flash pattern to choose 3. Working Voltage: 12 or 24V DC





Internal self-contained electronics.

Unique design of shrapnel, Easy to maintenance.

Lens: Reflectors Lens

Waterproof to IP67 standards.

Black Aluminum enclosure, to ensure good cooling effect.

Installation: Screw or T-shaped screws or Bracket





DC12V

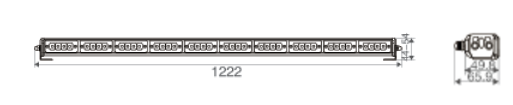

Product Dimension:1222mm(L)x65mm(W)x47mm(H) (48.1''x2.5''x1.8'')

Light source:1W Gen-3rd LED TIR tube,total 40 pcs LEDs,each module have 4pcs leds

LED Power:40W

Frequence:1~4HZ

Controlled and managed by DSP025 electronic card containing a microprocessor.

Waterproof ready for exterior mouting,IP65

Mounting:Set indoor or outdoor high intensity screw

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Use special microchip controlling circuit

Visible during daytime conditions

Life span:100000hrs

3 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Water-proof, Anti-shake, -30 to 65 degree temperature

Many kinds of flashing patterns, synchronized working,pattern memory​





Red,Blue,Amber,White,Green optional or color combine

Flash patterns can be customized

Various length is available,can be 2,4,6,8,10 or 12 pcs led module

DC 12V OR 24V
